URBAN PATROL 1.0x-2.0x Digital Zoom Night Vision pocket scope is one of the most compact and lightweight digital NV viewing devices available on the market. URBAN PATROL is built with the specially developed IR sensitive CMOS chip, making him tolerant for bright lights exposure and perfectly suitable for the urban environment.
The device is equipped with the powerful IR illuminator to allow operation in complete darkness. There is a built-in Micro SD slot and micro USB port to allow video recording.
Specifications
| Model |
BE18015 |
| Magnification, x |
1.0x (2.0x digital zoom) |
| Objective lens diameter, mm |
15 |
| FOV, degree |
14 |
|
Focus range, yard/m |
от 1 to infinity |
|
Exit Pupil, mm |
20 |
|
Sensor type and resolution, pxl |
1/5” CMOS 640x480 |
| LCD type and resolution, pxl |
Color LCD 320x240 |
|
IR illuminator wavelength, nm |
850 |
|
Video recording format |
H.264 |
| TV output signal frequency, NTSC / PAL |
60Hz / 50Hz (switchable) |
| Video Storage |
micro SD card or Micro USB output |
|
Overall dimensions, in/ mm |
5.28”x3.62”x1.85” / 134x92x47 |
| Weight, oz/g |
8.82 / 250 |
|
Power supply |
6V (4AA batteries) |
|
Estimated battery life with or w/out IR, max, hour |
2 or 5 |
|
Operating temperature, °F/°С |
14 to 104 / -10 to 40 |
|
Water intrusion |
IPX4 |

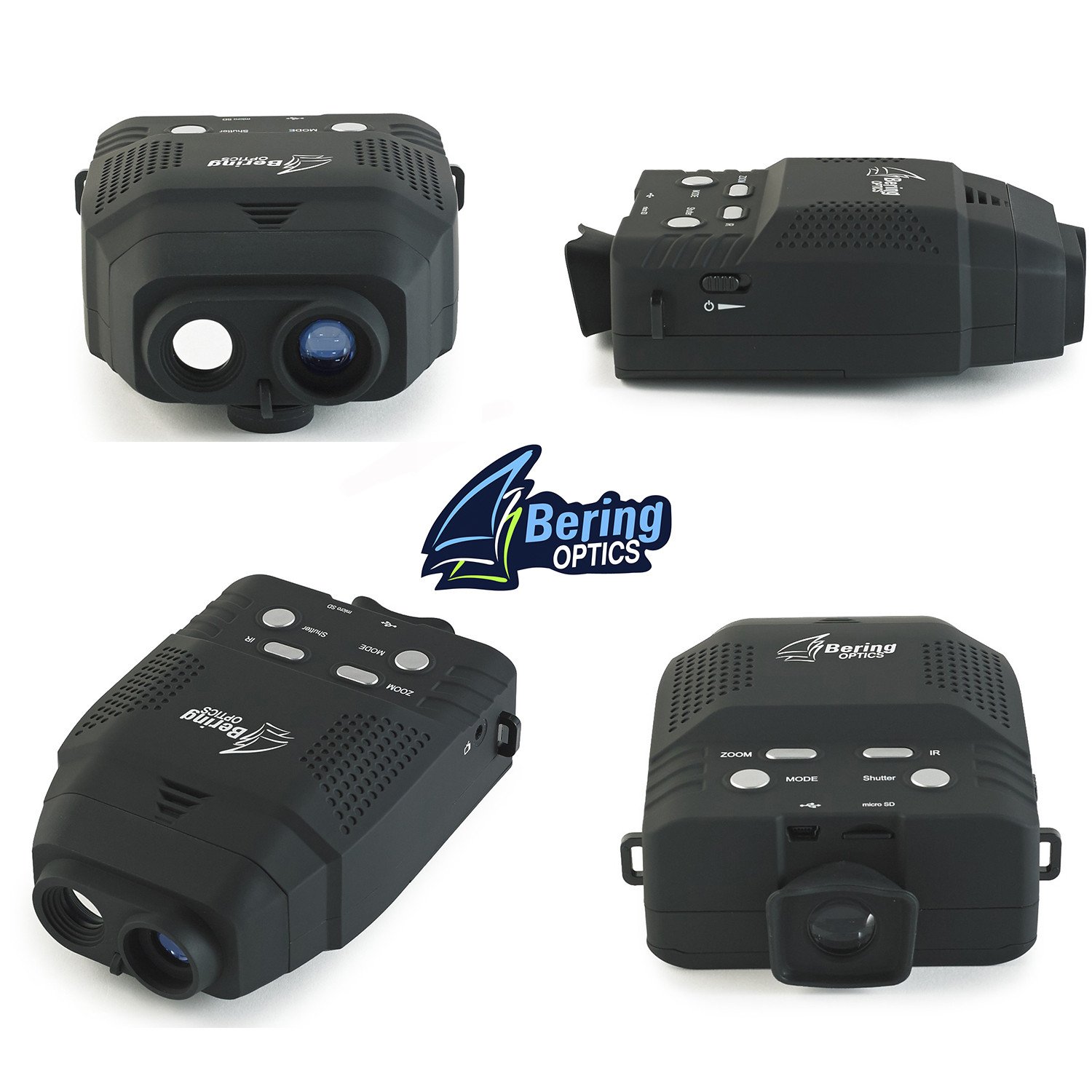

- Digital NV Pocket Scope URBAN PATROL
- Micro SD card
- AV cable for TV out jack
- USB cable
- Protective carrying case
- User manual
- Neck strap
- Lens cleaning tissue
