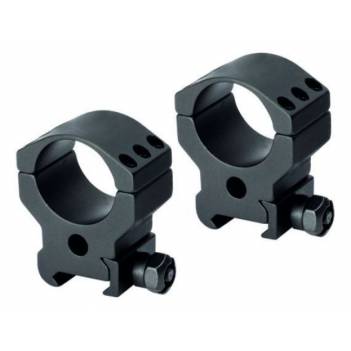

Heavy duty rugged mount ring design and build to suit even the heaviest of applications and recoil
30mm Tube -
- Ring is 30mm diameter.
- To suit scopes with 30mm diameter tubes.
High Profile Height -
Base plate to ring centerline 34.05mm (19.05mm base plate to ring bottom)
Clamp bottom to ring centerline 40.4mm
Overall Height 57.32mm
- 10.05mm base to bottom of ring "Saddle"
- In practice this means in most cases scopes upto approx. 56-60mm lens when on a flat base.
- However if base is raised or end of scope will be over barrel with more space then larger lens scopes may be used.
- This is down to the user to determine we can only give broad guidelines.
- See scope clearance guide at bottom of page.
Mount Rings Detail
- Heavy duty thumbscrew lock
- 6 top plate screws to hold your scope firmly in place
- Designed for Weaver/Picatinny rail fitting
- Solid CNC machined high grade aluminium construction for superior strength
Tech Spec
- Configuration: 2 Piece
- Ring Size (Diameter): 30mm
- Height: High
- Rail: Picatinny/Weaver
- Fixings (Rail & Top Cap): Rail thumbscrew and 6 screw top,plate
- Internal Cushion: NO
- Retractable 'Recoil Stop' Pin: NO - uses crossbolt lock bolt
- Overall Height: 57.32mm
- Weight: 225 grams
