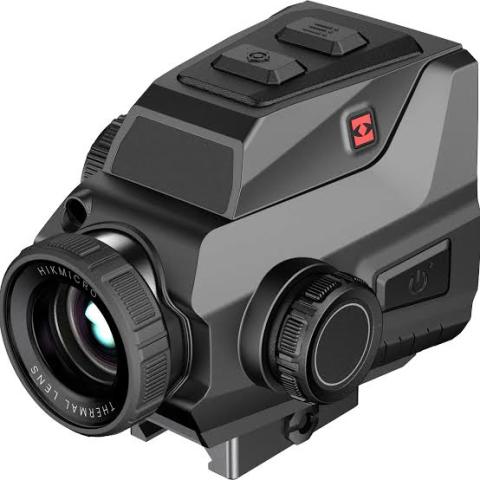

The HIKMICRO HIKTac TC19L builds on the capabilities of the TC19 with an integrated laser rangefinder (LRF) and ballistic calculator. It is designed for users who, in addition to quickly detecting targets, also want to precisely determine the distance for maximum accuracy.
The model combines a highly sensitive 256×192 VOx thermal sensor with a pixel size of 12 μm, a 19 mm F1.0 germanium lens, a NETD sensitivity of <18 mK, and a laser rangefinder with a range of up to 1,000 meters. In combination with the ballistic calculator, the system provides the necessary information for more precise aiming at various distances.
Thanks to HSIS, Sync Pro, Image Pro 3.0, and Zoom Pro technologies, the large 3.1-inch AMOLED display, and its lightweight design, the HIKTac TC19L offers smooth thermal imaging, high response speed, and comfortable viewing in both dynamic Airsoft scenarios and other applications requiring accurate distance estimation.
Key Features of the HIKTac TC19L
- Designed specifically for Airsoft applications
- Fast target detection even in complete darkness, smoke, and fog
- Extremely high thermal sensitivity (NETD <18 mK)
- Built-in laser rangefinder (LRF) with a range of up to 1000 m
- Integrated ballistic calculator
- HSIS (HIKMICRO Shutterless Image System) for continuous, freeze-free imaging
- Sync Pro algorithm for smooth tracking of moving targets
- Image Pro 3.0 and Zoom Pro for a more detailed and balanced thermal image
- Large 3.1" AMOLED display for comfortable viewing
- Minimum focusing distance of just 1 meter
- Instant Screen-Off for quickly turning off the display
- Removable and rechargeable battery
- Wi-Fi connectivity and compatibility with the HIKMICRO SIGHT App
- Killflash lens protection against BB hits
- Lightweight design weighing less than 290 g
- IP67 dust and water resistance
Advantages of the HIKTac TC19L
NETD <18 mK – detect the enemy before they spot you
At the heart of the HIKTac TC19L is its highly sensitive thermal sensor with a NETD sensitivity of less than 18 mK. This means the device detects extremely small temperature differences that many other thermal devices fail to visualize. Even when the action takes place in complete darkness, fog, smoke, or dense vegetation, human silhouettes remain clearly distinguishable, allowing for faster enemy detection and a quicker response.
Built-in Laser Rangefinder and Ballistic Calculator
The main difference between the HIKTac TC19L and the TC19 is the integrated laser rangefinder (LRF), which measures distances up to 1,000 meters. In combination with the built-in ballistic calculator, the device automatically calculates the necessary ballistic correction based on a preset profile. This ensures greater accuracy when shooting at various distances and makes the TC19L the most feature-rich model in the HIKTac series.
HSIS and Sync Pro – Continuous, Interruption-Free Image
During a dynamic Airsoft game, any interruption in the image can mean losing visual contact with a moving target. That is why HIKMICRO has developed its own HSIS (HIKMICRO Shutterless Image System) technology, which eliminates the characteristic image freezing observed in many thermal devices.
Combined with the Sync Pro algorithm, the image remains smooth, and what is happening in front of the device is displayed almost instantly on the screen. This allows for continuous tracking of moving targets without annoying interruptions, enabling the player to react more quickly in any situation.
Image Pro 3.0 and Zoom Pro – Maximum Image Detail at Any Distance
Prolonged observation with thermal imaging equipment often leads to eye strain, especially when the image contains too much visual noise. The Image Pro 3.0 and Zoom Pro algorithms analyze the image in real time, enhancing contrast, detail, and target outlines. The result is a clearer, more balanced, and more comfortable image for both close-up and long-range observations.
3.1-inch AMOLED display for more comfortable viewing
The HIKTac TC19L features a large 3.1-inch AMOLED display that allows for a more natural viewing experience without having to press your eye tightly against the device. This significantly reduces eye strain during prolonged use, and the larger view makes it easier to identify both targets and the surrounding environment.
Minimum focusing distance of just 1 meter
Airsoft scenarios often take place in confined spaces, buildings, and dense vegetation, where an opponent can appear literally just a few steps away. Thanks to a minimum focusing distance of just 1 meter and a field of view of 9.2° × 6.5°, the HIKTac TC19L provides a clear image even at close range, without requiring the player to change position.
Instant Screen-Off – Stay Undetected with a Single Press
The light from the display can give away a player’s position during nighttime Airsoft scenarios. That’s why the HIKMICRO HIKTac TC19L features the Instant Screen-Off function, which allows the display to be turned off instantly with just one press of the power button. This eliminates the visible light that could reveal your location without requiring you to turn off the device itself. If necessary, the display can be reactivated in a fraction of a second.
Lightweight design and removable battery for long gaming sessions
Weighing less than 290 grams, the HIKTac TC19L places virtually no strain on your airsoft platform and allows for extended use without fatigue. The device operates on a removable and rechargeable battery, allowing you to swap the battery in the field and keep the game going without a long interruption.
Wi-Fi Connectivity and the HIKMICRO SIGHT App
Thanks to its 2.4 GHz / 5 GHz Wi-Fi connection, the HIKTac TC19L connects wirelessly to the HIKMICRO SIGHT App. Through the app, you can easily transfer photos and videos, share your best moments with friends or the community, and manage various settings directly from your mobile device.
Killflash Lens Protection
One of the unique features of the HIKTac series is the special Killflash lens protection. It was developed specifically for airsoft and serves to dissipate the energy from BB pellet impacts, reducing the risk of direct damage to the germanium lens. Additionally, the design minimizes reflections from the front lens, reducing the likelihood that the player’s position will be detected.
IP67 Protection for Use in All Conditions
The HIKTac TC19L is built for use in real-world field conditions. Its IP67 certification ensures reliable protection against dust, heavy rain, and adverse weather conditions, so the device continues to operate reliably regardless of terrain or weather.
Quick Mount on a Picatinny Rail
The HIKMICRO HIKTac TC19L is designed for quick and secure mounting on a standard Picatinny (MIL-STD-1913) rail. Thanks to the quick-mount system, the device can be easily attached to or removed from the airsoft replica, which facilitates transport and storage. Once secured, the scope remains firmly in place even during dynamic gameplay scenarios.
Technical Specifications
- Thermal sensor: VOx, uncooled
- Sensor resolution: 256 × 192 pixels
- Pixel size: 12 μm
- NETD: <18 mK
- Lens: 19 mm F1.0, germanium
- Optical magnification: 1.2x
- Digital magnification: 2x, 4x, 8x
- Refresh rate: 50 Hz
- Maximum detection range: up to 1,200 m
- Minimum focusing distance: 1 m
- Field of view: 9.2° × 6.5°
- Display: 3.1" AMOLED (600 × 450 px)
- Internal memory: 4 GB
- Picture-in-Picture (PIP) function
- Color palettes: White Hot, Black Hot, Red Hot, and Iron Bow
- Operating temperature: -30°C to +45°C
- Power supply: 1 × 18650 rechargeable battery
- Charging: USB-C (5 V / 2 A)
- Maximum operating time: up to 4 hours
- Laser rangefinder (LRF): yes
- Maximum measurement range: 1000 m
- Measurement accuracy: ±1 m
- Minimum measurement distance: 10 m
- Calibration profiles: 5
- Dimensions: 106.9 × 94.8 × 86.7 mm
- Weight: 290 g
What is the HIKMICRO HIKTac TC19L suitable for?
The HIKTac TC19L is designed primarily for airsoft players who want the fastest possible detection of opponents, smooth tracking of moving targets, and reliable performance in both daytime and nighttime scenarios. Thanks to its minimum focusing distance of 1 meter, it is an excellent solution for CQB games, wooded terrain, and open spaces. In addition to serving as a thermal rangefinder, the device can also be used as a compact thermal surveillance camera.
Thanks to its built-in laser rangefinder and ballistic calculator, the TC19L is also suitable for users who need precise distance measurement and automatic ballistic calculations.
When might this model not be the best choice?
The HIKTac TC19L is optimized for Airsoft applications. If you’re looking for a thermal sight for hunting or shooting at significantly longer ranges, a better choice would be HIKMICRO models with higher sensor resolution and a larger lens, which offer higher magnification and a longer detection range.
Why Choose the HIKMICRO HIKTac TC19L?
The HIKMICRO HIKTac TC19L is designed for users who want more than just high-quality thermal imaging. In addition to all the advantages of the HIKTac series—an extremely sensitive thermal sensor, smooth, freeze-free imaging thanks to HSIS, the Image Pro 3.0 and Zoom Pro algorithms, a large AMOLED display, and a rugged IP67-rated design—this model also features a built-in laser rangefinder and ballistic calculator.
The combination of these technologies allows not only for quick target detection and tracking, but also for accurate distance measurement and precise aiming. If you’re looking for the most feature-rich model in the HIKTac series—one that combines reliable thermal optics, smart technologies, and maximum practicality—the HIKMICRO HIKTac TC19L is an excellent choice.
