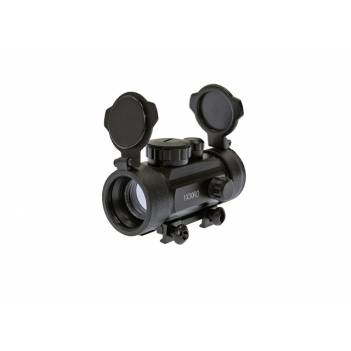

The RD30 Red Dot from X-BOW FMA comes in a robust metal construction and has a red or green illuminated dot, which can be adjusted to the distance with a simple side and height adjustment. The illuminated dot is adjustable in 5 brightness levels and has a size of 5 MOA (angular minutes) at 100m. With 30mm lenses, the RD30 allows a field of view of 19m (at 100m), which is sufficiently large when aiming at the target and can be seen undistorted and clearly due to the single lens without magnification. The lenses themselves are protected from dust and dirt by protective caps at the front and rear.
For easy mounting on the crossbow, the Red Dot has an integrated mount for 19mm (Weaver) and 22mm (Picatinny) sight rails, which is attached via two screws.
Technical data:
- Colour: black matt anodised
- Material: aluminium
- Magnification: 1x (none)
- Field of view: 19m (at 100m)
- Illumination points: Red or green
- Illuminated dot size: 5 MOA (approx. 14.55cm at 100m)
- Required battery: 1x CR2032
Dimensions:
- Objective lens diameter: 30mm
- Eyepiece diameter: 30mm
- total length: 95 mm
- Weight: 213g
Scope of delivery:
- Red Dot
- Battery CR2032
- Protective caps
- Cleaning cloth
Characteristics
- Shipping weight:0,21 Kg
- Product weight:0,21 Kg
