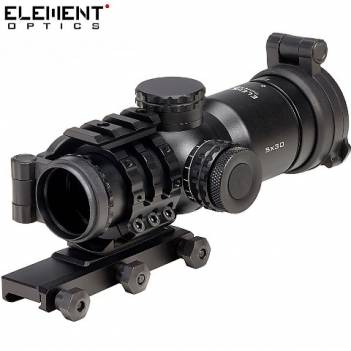

IMMERSIVE SERIES 5×30
Traditional riflescopes have their place in the optics world, but new technology is allowing us to push the envelope of what is possible. The Immersive Series brings you range of ultra-compact Prismatic Riflescopes with many unique properties, including market-leading field of view, drawing you in to your surroundings for a better perspective. Unlike conventional scopes, which present the image from the eyepiece as floating distantly in front of you, the image from an Immersive Series scope allows for vastly improved peripheral awareness, giving the impression that you are immersed in the scene – and with the optical clarity of ED Glass, there are no compromises.
The 5×30 Model offers enough eye relief for use with heavy-recoiling rifles, and our new LPR reticles.
FEATURES
- Compact, Lightweight design
- Tilt-Adjustable Unimount with 2x Base Lengths Included
- Illuminated Reticle (Push-Button System)
- Accessory Rail Section Included
- Side Parallax: 6yds-Infinity
- ED Glass for reduced chromatic aberration and improved sharpness
- Resettable, Capped turrets in MOA or MRAD
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Magnetic Flip Caps Included
SPECS
| MAGNIFICATION | 5x |
| TUBE DIAMETER | 34mm |
| OBJECTIVE LENS DIAMETER | 30mm |
| EXIT PUPIL | 13.5-3.3mm |
| EYE RELIEF | 3.35” (85mm) |
| FIELD OF VIEW | @100yds: 33ft | @100m: 10.2m |
| CLICK VALUE | 1/4 MOA (15 MOA / REV) | 1/10 MRAD (6 MRAD / REV) |
| ELEVATION ADJUSTMENT RANGE | 83 MOA | 28 MRAD |
| WINDAGE ADJUSTMENT RANGE | 83 MOA | 28 MRAD |
| MINIMUM PARALLAX | 6 YDS | 6 METERS |
| LENGTH | 5.78” | 147mm |
| WEIGHT | 17.14oz | 486g |
DIMENSIONS MRAD
DIMENSIONS MOA
