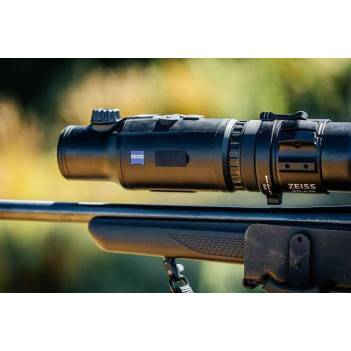

As a responsible hunter you want to be sure to be following the hunting principles. Wounding an animal is not acceptable. To accomplish that you have to be able to rely on your shot landing where you intend it to. The ZEISS DTC 4/50 thermal imaging clip-on ensures maximum accuracy. The large 640x512 sensor impresses with a sensitive NETD value. This produces a sharp and clear image, allowing you to safely harvest game both in the forest and in the open field thanks to the optimised detail recognition.
With the digital zeroing assistant, your DTC 4/50 can be zeroed quickly and easily using the ZEISS Hunting App. Once the combination of thermal imaging clip-on and riflescope has been matched, you can save the setting as a profile in the app. You can store up to four shooting profiles and therefore easily change the clip-on from one riflescope to another.
Performance
|
Focal length |
50 mm |
|
Aperture |
f/1.1 |
|
Field of view at 100 m (yds) |
15.4 m (46 ft) |
|
Objective viewing angle |
8.8° x 7.0° |
|
Range |
2.635 m (2.883 yd) |
|
Sensor resolution |
640 x 512 |
|
Sensor pixel pitch |
12 μm |
|
NETD value |
≤ 25 mK |
|
Display resolution |
1024 x 768 |
|
Display frame rate |
50 Hz |
|
Display type |
AMOLED |
|
Optical magnification |
0,65 | 1,0 |
|
Maximum digital zoom |
- |
|
Zoom steps |
- |
|
Vertical adjustment range at 100 m |
55 cm |
|
Lateral adjustment range at 100 m |
88 cm |
|
Adjustment per click at 100 m |
1.60 cm |
Features
|
Battery type |
Li-Ion |
|
Battery run time |
5 h |
|
Internal memory |
32 GB |
|
WLAN |
+ |
|
Bluetooth |
- |
|
Livestream function (Video & Photo) |
+ |
Physical
|
Operating temperature |
− 10°C | + 50°C (+ 14 °F | + 122°F) |
|
Length x Width x Height |
182 x 61 x 65 mm (7.2 x 2.4 x 2.6") |
|
Weight |
680 g (24.0 oz) |
