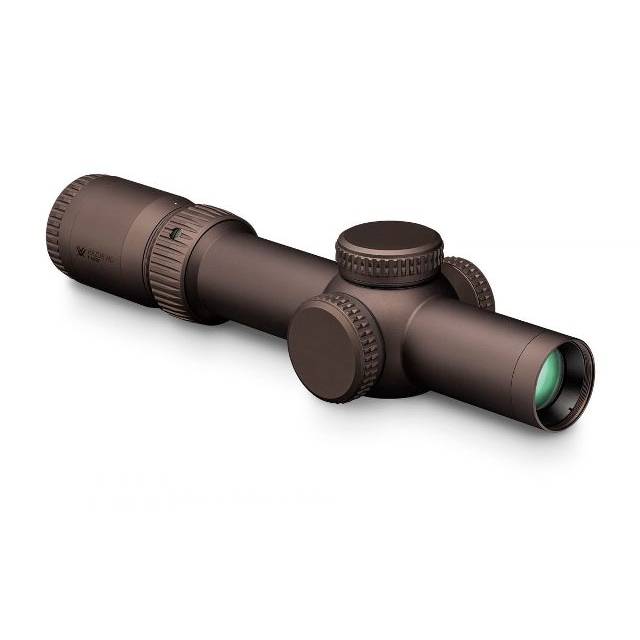

The next evolution of our wildly popular Razor line, the Razor HD Gen III 1-10x24 brings the highest level of first focal plane performance to those who demand the versatility of 1-10x power. Military, law enforcement, and competition shooters alike will love the clarity of an HD optical system and a crisp, illuminated reticle in a package that weighs the same as our 1-6x, but doesn’t sacrifice any durability. A true 1x on the low end and daylight bright illumination for reliable performance in all conditions makes this a single solution for close-quarters and long-range.
Razor HD Gen III 1-10x24 FFP Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 10.1 | 2.0 | 2.5 | 6.7 | 0.4 | 3.4 |
| Heights | |
|---|---|
| H1 | H2 |
| 1.3 | 1.8 |
Included in the Box
- Sunshade
- Lens cloth
- CR2032 Battery
- Throw lever
- L-TEC Tool
Magnification 1-10x
Objective Lens Diameter 24 mm
Eye Relief 3.6 inches
Field of View 116-11.7 ft @100 yds
Tube Size 34 mm
Turret Style Low Capped
Adjustment Graduation 1/4 MOA
Travel Per Rotation 25 MOA
Max Elevation Adjustment 120 MOA
Max Windage Adjustment 120 MOA
Parallax Setting Fixed @150 yds
Length 10.1 inches
Weight 21.5 oz
Parts Diagram (PDF) Download

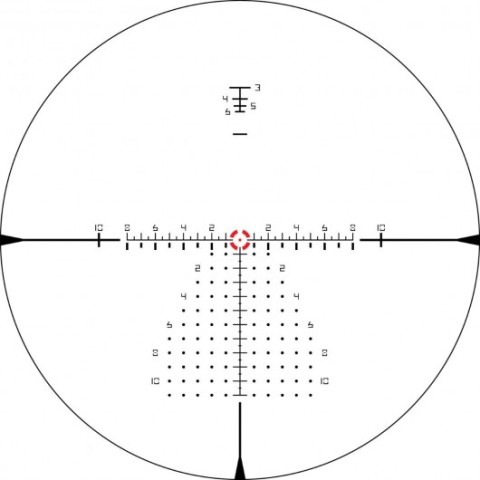

Reticle Manual (PDF) Download
Product Manual (PDF) Download
