Every great story at deer camp starts with one shot—and the Triumph™ HD 3-9x40 riflescope delivers everything you need to make it yours. With impressive glass, solid construction, and included Hunter Rings, it’s built to get you field-ready fast, so you can zero in and head out to hunt. Made for hunters who know that a great shot can define the season—and the stories that come with it.
TRIUMPH HD 3-9X40 DIMENSIONS (IN INCHES)
| LENGTHS | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 11.81 | 1.58 | 1.60 | 4.41 | 3.87 | 3.55 |
| HEIGHTS | |
|---|---|
| H1 | H2 |
| 1.87 | 1.72 |
WHAT’S IN THE BOX
- 1" HUNTER RINGS - LOW HEIGHT
- CUSTOM TURRET TOOL
- NEOPRENE COVER
- LENS CLOTH
- TORX® T-25 WRENCH

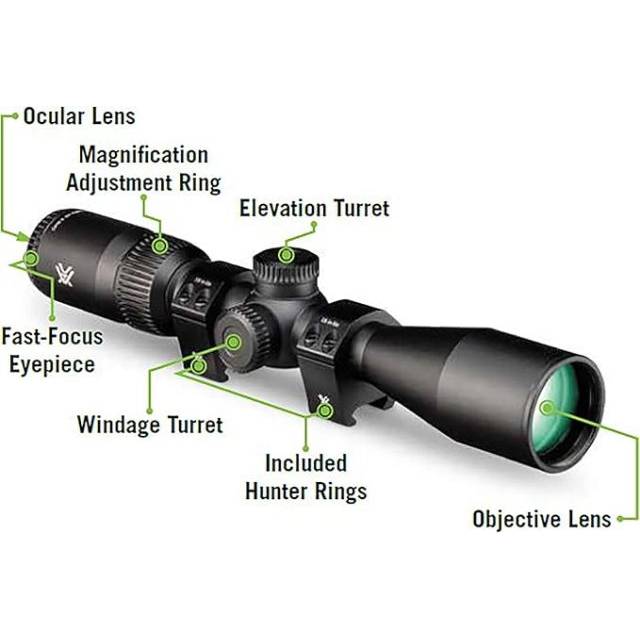

FEATURE TECH
INCLUDED 1" WEAVER HUNTER RINGS
Low Height Hunter Rings Included.
HD OPTICAL SYSTEM
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
FULLY MULTI-COATED LENSES
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
FAST-FOCUS EYEPIECE
Allows for quick and easy reticle focusing.
AIRCRAFT GRADE ALUMINUM
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
LOW-GLARE MATTE BLACK ANODIZE
Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
WATERPROOF
Designed to withstand harsh weather conditions.
FOGPROOF
Designed to withstand a wide range of temperatures.
SHOCKPROOF
Designed to withstand the highest levels of recoil and impact.
SPECIFICATIONS
| Magnification | 3-9x |
|---|---|
| Objective Lens Diameter | 40 mm |
| Focal Plane | Second Focal Plane |

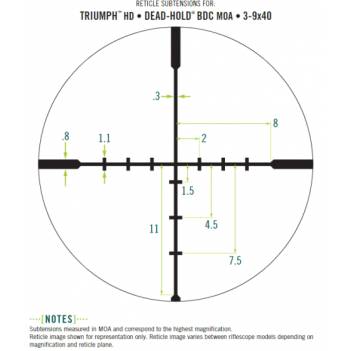

| Reticle | Dead-Hold® BDC (MOA) |
| Eye Relief | 3.9" |
| Field of View | 39.1' - 12.7' @ 100 yds. |
| Turret Style | Capped |
| Tube Size | 1 inch |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 55 MOA |
| Max Windage Adjustment | 55 MOA |
| Parallax Setting | 100 yds. |
| Length | 11.8" |
| Weight | 16.5 oz. |
