Description

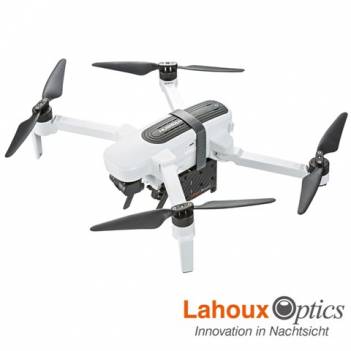

The Lahoux Buzzard is a thermal imaging clip-on designed for a C1 class drone. Applications are wide ranging, for instance security & surveillance, anti-poaching, agricultural use, nature conservation, rescuing fawns and birds before mowing, industrial inspection amongst others. The video transmitter gives an operational range of up to 500 meters. The thermal imaging module has a resolution of 320×256 pixels. The search area is 19.4 x 15 meters at 30 meters altitude. DRI (detection/recognition/identification): Vehicle (4.00 × 1.75 m) – 956/239/120 meters, Human (1.75 × 0.75 m) – 414/104/52 meters, Fawn (0.5 × 0.5 m) – 180/45/23 meters
Comes standard with the following accessories:
Monitor, Tripod, Drone, 4x Lahoux heat pad, Pouch Lahoux.
Advantages
- Lightweight composite carbon fiber construction
- Easy to attach to and remove from various drones
- Video transmission via market leading hardware
- On-board video recorder
- Thermal image is transmitted to an LCD monitor on a tripod
- Includes drone, monitor and tripod
Technical specifications
Download product flyer PDFDetector
-
VOx/ 320 x 256 pixels
Type/Resolution
-
12 µm
Pixel pitch
-
60 Hz
Frame rate
Optics
-
32.9° × 26.6°
Field of view
-
0.1 × 0.1°
Field of view per pixel
-
64.7 x 50.1
Observable area at 100 meter
-
0.2 × 0.2 m
Area per pixel at 100 meters
Electronics
-
5.8 GHz
Video transmitter frequency
-
25 mW
Video transmitter power
-
Yes
Internal recording
-
640 x 480
Recording resolution
Operating
-
9V rechargeable LiPO
Power supply
-
> 1 hour *
Battery lifetime
-
IP20
Encapsulation
-
L 138 × W 59 × H 58 mm
Dimensions
-
0,115 kg
Weight
* Depending on the usage conditions
DRI values
