For years Delta Optical has been helping ambitious shooters to make their dreams and passions come true. This is reflected in our unique, most advanced series of Stryker HD precision rifle scopes. The rifle scopes in this series feature a construction based on ED glass, which ensures excellent image quality, and high light transmission, special anti-reflective coatings and illuminated grid allow shooting even in low light conditions.

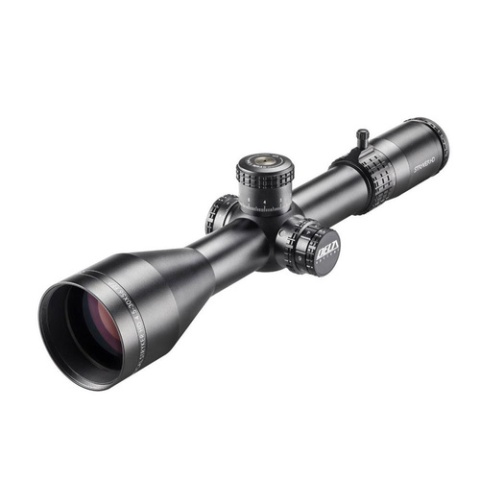

The Stryker HD 4.5-30x56 FFP scope is designed for medium and long range shooting. Top-notch ED optics encased in a robust 34mm tube and robust and precise mechanics can handle even very powerful distances. The scope is equipped with a ZeroLock function, which allows you to insert a lock for the vertical crosshair knob for specific settings.
The high quality of the scope is evidenced by the impressive parallax adjustment range - from 10m up to infinity. In this model, light transmission reaches 98% for a single layer and 92% for the entire telescope. The large eyepiece provides very comfortable observation. The water and fogproof tube has been filled with nitrogen, and additionally allows you to adjust the target sighting grid to 300 cm vertically.

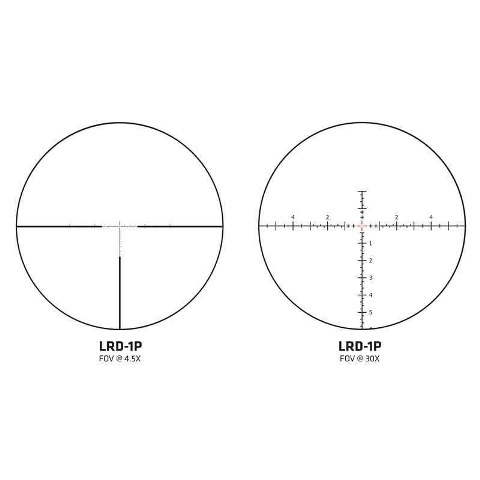

The scope is available with unique targeting reticles in the foreground of the LRD-1T, LRD-1P and DLR-1 optical planes scaled so that one click of the correction drums shifts the screw by 10 mm over a distance of 100 m. All three grids provide maximum shooting comfort and high functionality over the entire zoom range (4.5-30x). The design of the nets allows for both the assessment of the distance to an object of known size, as well as for the correction of the bullet's descent or overtravel and corrections to the wind. The range of adjustment of each grid reaches 300 cm vertically, which makes it easy to shoot from any calibre even over very long distances.
TECHNICAL DATA:
Scopes series: Stryker HD
Type of targeting grid: LRD1-P
Symbol at the supplier: DO-2501
The grid position: First focal plane (FFP)
Minimal magnification: 4.5 x
Grid illumination: YES
Maximum magnification: 30 x
Cross adjustment range (Vertical/Level): 30/15 MIL
Lens diameter: 56 mm
Output pupil: 8.8 - 1.9 mm
Distance from eye: 81 - 97 mm
Parallax adjustment: Side focus (23 m - ∞)
Tubus: 34 mm (1 part)
Angular field of vision: 4.72 - 0.71 °
Length: 365 mm
Twilight efficiency: 15.87 - 40.99
Weight: 1042 g
Watertightness: 0.3 kg/cm2
Nitrogen filling: YES
Shock resistance: 6500 J
Operating temperature: -20 / 71 °C
Single click cross adjustment (MIL): 0.1
Characteristic features: ZeroLock
Warranty period: 120 months
