DO-2507

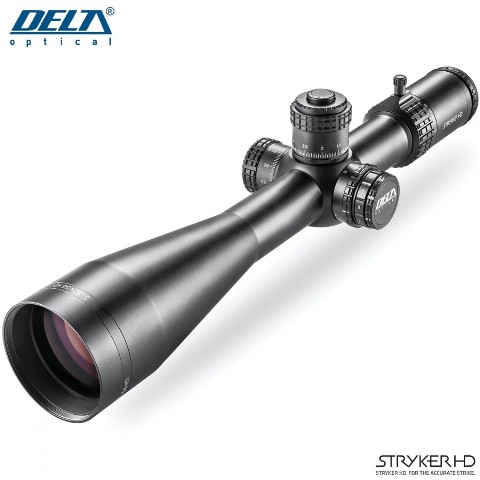

The Stryker HD 5-50x56 SFP riflescope is a model designed for sports long-range shooting. 10x zoom and top-class ED optics enclosed in a solid 34mm tube as well as durable and precise mechanics allow you to measure even very powerful distances. The telescope is equipped with a ZeroLock function that allows you to set a lock for the vertical cross adjustment knob for specific settings. The high quality of the telescope is confirmed by the impressive range of parallax adjustment - from 10m to infinity. Let us add that in this model the light transmission reaches 98% for a single layer and 92% for the entire telescope. The large eyepiece ensures a very comfortable observation. The tube is resistant to water and fogfilled with nitrogen , and additionally allows the reticle to be adjusted vertically up to 300 cm.

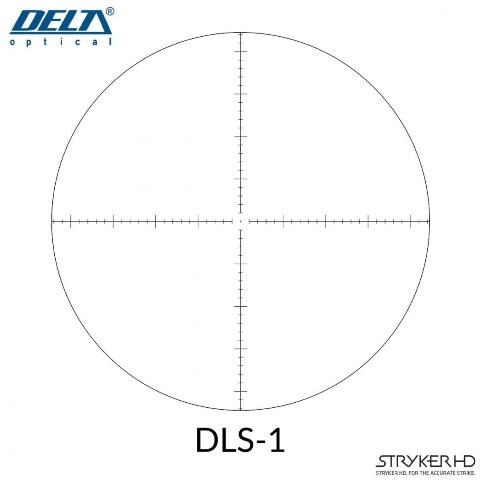

The telescope is available with three nets DLS-1, DLS-2 and DLS-3 . These meshes are the essence of precision and usability. The DLS-1 and DLS-2 meshes have been calibrated in milliradians (Mil), convenient to convert into metric units (1 Mil = 10cm per 100m) and correspond to the clicks of the telescope - 1 click is 0.1 Mil (10mm) . The DLS-3 mesh has been graduated in MOA . The grids are placed in the second optical plane of the telescope and have an illuminated central point. The base magnification is 40x.
| Spotting scope series: | Stryker HD | Reticle type: | DLS-1 |
| Supplier's symbol: | DO-2504 | Grid position: | Second focal plane (SFP) |
| Minimum magnification: | 5 x | Mesh backlight: | Yes |
| Maximum magnification: | 50 x | Cross adjustment range (vertical / horizontal): | 30/15 MIL |
| Objective diameter: | 56 mm | Exit pupil: | 11.2 - 1.12 mm |
| Distance from the eye: | 89 - 100 mm | Parallax Adjustment: | Side focus (10 m - ∞) |
| Tube: | 34 mm (1 part) | Angular field of view: | 4.04 - 0.41 ° |
| Length: | 398 mm | Twilight efficiency: | 16.73 - 52.92 |
| Weight: | 1100 g | Watertightness: | 0.3 kg / cm2 |
| Nitrogen Filling: | Yes | Shock resistance: | 6500 J. |
| Working temperature: | -20 / 71 ° C | Magnification: | 5 - 50 x |
| Cross adjustment single click (MIL): | 0.05 | Characteristic Features: | ZeroLock |
| Guarantee period: | 120 months |
Equipment
| battery |
| lens hood |
| cover for eyepiece and lens |
