Description

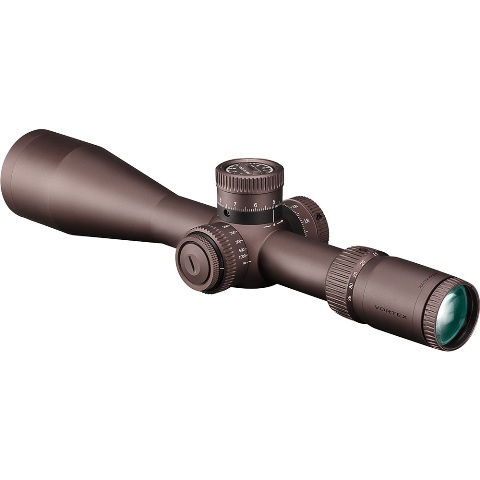

Built around the perfect balance of magnification and field of view, the Razor® Gen III 6- 36x56 FFP delivers the resolution and contrast you need for long-range, tactical shooting. To get the absolute most out of the first focal plane reticle, the EBR-7D presents a clean sight picture while still providing ample wind holds and ranging information. Round it out with a rugged build and you have the long-range, tactical solution you’ve been waiting for.
Razor HD GEN III 6-36x56 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 15.25 | 1.95 | 2.25 | 6.20 | 5.50 | 3.55 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.56 | 1.80 |
SPECS
| Magnification | 6-36x |
|---|---|
| Objective Lens Diameter | 56 mm |

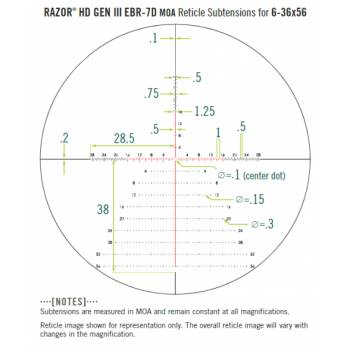

| Reticle | EBR-7D (MOA) |
| Turret Style | Exposed Locking |
| Tube Size | 34 mm |
| Adjustment Graduation | 1/4 MOA |
| Parallax Setting | 10 yds to infinity |
| Max Windage Adjustment | 52.5 MOA |
| Max Elevation Adjustment | 120 MOA |
| Travel Per Rotation | 25 MOA |
| Field of View | 20.5-3.5 ft @ 100 yds |
| Eye Relief | 3.5 inches |
| Length | 15.3 inches |
| Weight | 45.1 oz |
INCLUDED IN THE BOX
- 3 Inch Sunshade
- Throw Lever
- Defender Flip Caps
- Lens Cloth
- CR2032 Battery
- Custom 2mm Throw Lever Tool
- 2.5mm Turret Tool
